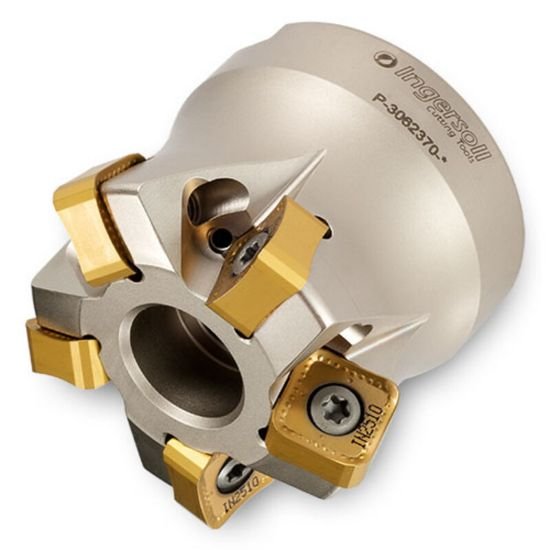

Picture of Ingersoll DD6H-20R01 Milling Cutter 2.000 Shell0.7500 5 Flute Coolant 0.065 Max DOC 1.650 OAL

Ingersoll DD6H-20R01 Milling Cutter 2.000 Shell0.7500 5 Flute Coolant 0.065 Max DOC 1.650 OAL

Part Number: ING2901667 ISO: DD6H-20R01 ANSI:DD6H-20R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008243
Vendor: Sussex Tool and Supply
$673.87

Description

INGERSOLL 2901667 Square Feed Mill SHELL0.7500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 1.6500 41.91MM
Flutes/Inserts 5
Tool Dia 2.0000 50.80MM
Performance & Capacity
Cut Dia Min 1.2520 31.80MM
Depth Of Cut Max 0.0650
Max Ramp Angle 1.10°
Materials & Finish
Tool Material Steel
