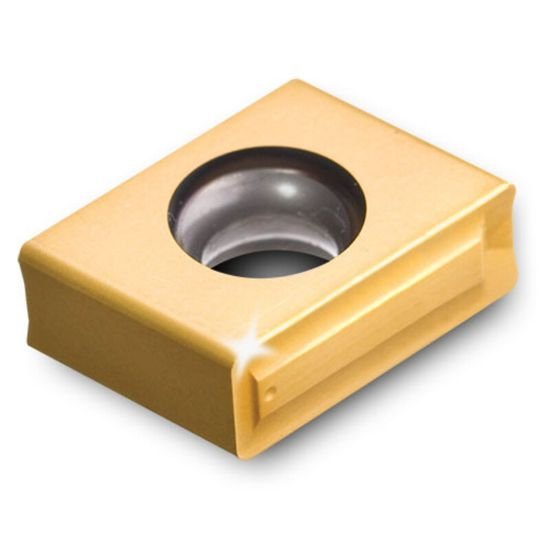

Picture of Ingersoll DCM323R01 IN6530 Milling Insert Ball Mill 0.031 TiCN + Al2O3 + TiN ProTrio Insert

Ingersoll DCM323R01 IN6530 Milling Insert Ball Mill 0.031 TiCN + Al2O3 + TiN ProTrio Insert

Part Number: ING5813561 ISO: DCM323R01 IN6530 ANSI:DCM323R01 IN6530
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1006330
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

INGERSOLL 5813561 Ball Insert Negative TiCN + Al2O3 + TiN TOUGH GRADE FOR IRON AND STEEL
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing
Insert Style DC
Insert Shape/Cutter Pocket Shape Ball
Insert Type Negative
Dimensions & Sizing
Insert Size Ic 32
Geometry & Angles
Corner Radius 0.0310 0.79MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Depth Of Cut Max 0.0169
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade IN6530
Compatibility & Fit
Insert Fits On Edge
