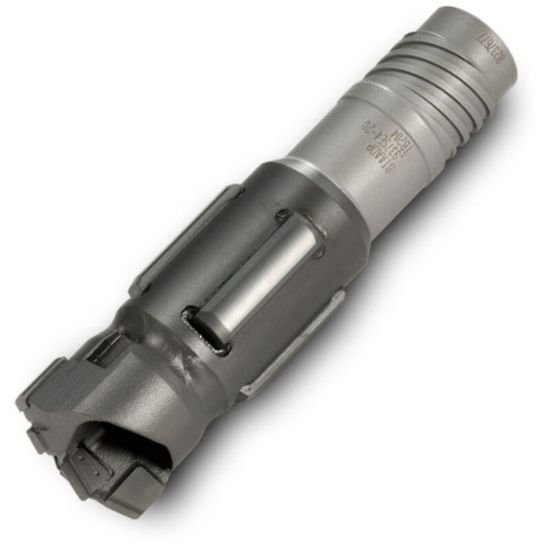

Picture of Ingersoll BTAADP1.500SE4-33 TB253 1.5 BTA Brazed Single tube system - crosshole External 4-start thread .496-2.559" (12.6-65.0 mm)

Ingersoll BTAADP1.500SE4-33 TB253 1.5 BTA Brazed Single tube system - crosshole External 4-start thread .496-2.559" (12.6-65.0 mm)

Part Number: ING4817382 ISO: BTAADP1.500SE4-33 TB253
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1106186
Vendor: Sussex Tool and Supply
$270.60

Description

INGERSOLL 4817382 Gun Drill Uncoated 1.5000 38.10MM - 1-1/2 Drill Dia4.6100 117.09MM Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Gun Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Gun Drill Component Brazed Heads
Dimensions & Sizing
Overall Length 4.6100 117.09MM
Flutes/Inserts 1
Tool Dia 1.5000 38.10MM - 1-1/2
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Grade TB253
Compatibility & Fit
Connection BTSI033
