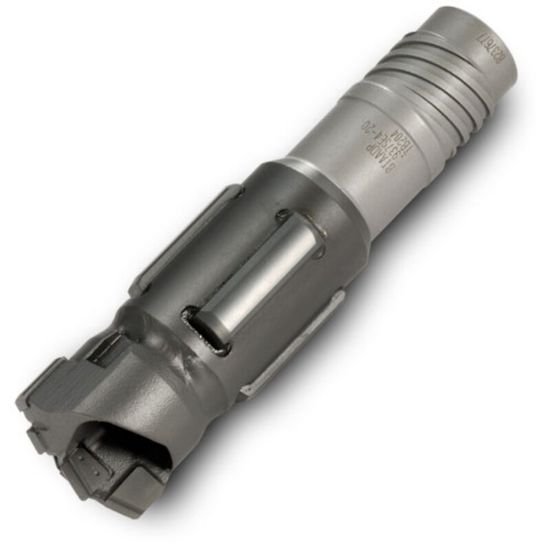

Picture of Ingersoll BTAADP.734SE4-16 TB203 0.734 BTA Brazed Single tube system - crosshole External 4-start thread .496-2.559" (12.6-65.0 mm)

Ingersoll BTAADP.734SE4-16 TB203 0.734 BTA Brazed Single tube system - crosshole External 4-start thread .496-2.559" (12.6-65.0 mm)

Part Number: ING4834454 ISO: BTAADP.734SE4-16 TB203
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1106209
Vendor: Sussex Tool and Supply
$253.00

Description

INGERSOLL 4834454 Gun Drill Uncoated 0.7344 18.65MM - 47/64 Drill Dia2.9100 73.91MM Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Gun Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Gun Drill Component Brazed Heads
Dimensions & Sizing
Overall Length 2.9100 73.91MM
Flutes/Inserts 1
Tool Dia 0.7344 18.65MM - 47/64
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.7344 18.65MM - 47/64
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Grade TB203
Compatibility & Fit
Connection BTSI016
