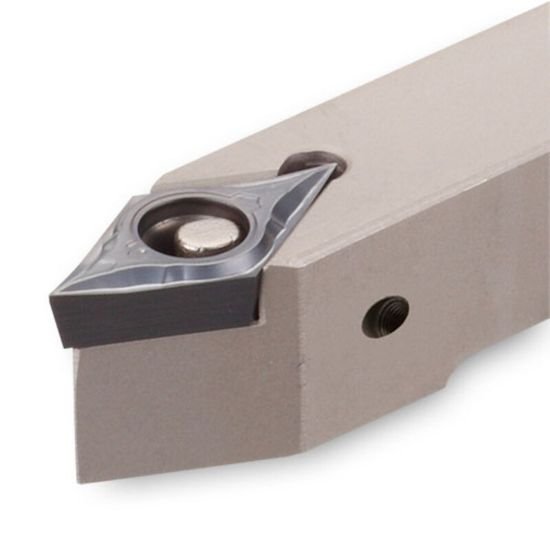

Picture of Ingersoll BDNCN10-3C-SH Turning Stick Tool 55.0° Swiss Square 0.625 Steel

Ingersoll BDNCN10-3C-SH Turning Stick Tool 55.0° Swiss Square 0.625 Steel

Part Number: ING3606614 ISO: BDNCN10-3C-SH ANSI:BDNCN10-3C-SH
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1048892
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

INGERSOLL 3606614 55.0 ° Stick Tool0.6250 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 11 "32"
Geometry & Angles
Lead Angle 62.5°
Lead Angle & Clearance Angle Combined 62.5° Lead Angle 60.0° Clearance Angle, Swiss
Clearance Angle 60.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
