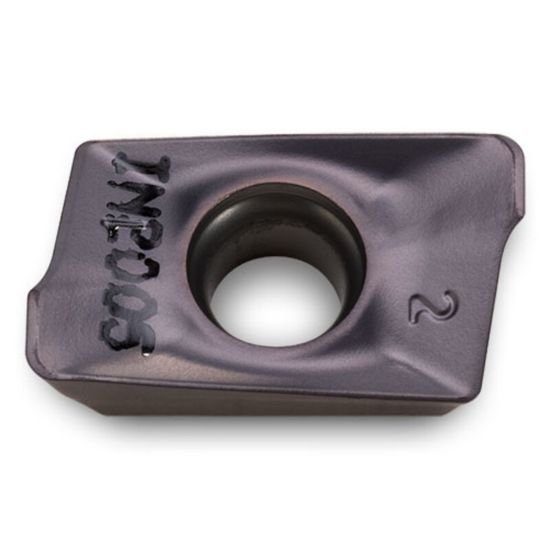

Picture of Ingersoll AOMT120432R IN1030 Milling Insert Paralelagram 0.125 TiCN Hipos

Ingersoll AOMT120432R IN1030 Milling Insert Paralelagram 0.125 TiCN Hipos

Part Number: ING5811664

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1005946
Vendor: Sussex Tool and Supply
$22.85
This product has a minimum quantity of 10

INGERSOLL milling insert parallelogram with TiCN coating grade IN1030. Made in USA no. Shipping state ILLINOIS. Coating TiCN. Grade IN1030.

Key Details

Materials & Finish

  • Coating: TiCN
  • Grade: IN1030

Grades & Coatings

  • Alternate Description: INGERSOLL 5811664 Parallelogram Insert Positive TiCN AOMT120432R IN1030 AOMT120432R IN1030

Other Details

  • Brand: INGERSOLL
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Milling insert performs cutting function in machining. Used in tools for material removal. Designed for parallel cutting action with TiCN coating.

Composition

Paralelagram insert with TiCN coating. Grade IN1030. Made in USA: No.

Typical Uses

Used in milling operations. Fits in milling machines. Applied in cutting tools for metal work.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Family Group Hipos
Coating TiCN
Insert Or Tool Insert
Insert Application Roughing, Semi Finishing
Corner Radius 0.1250 3.18MM
Insert Style AO
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 12
Grade IN1030
Insert Fits Parallelogram
Depth Of Cut Max 0.5240
