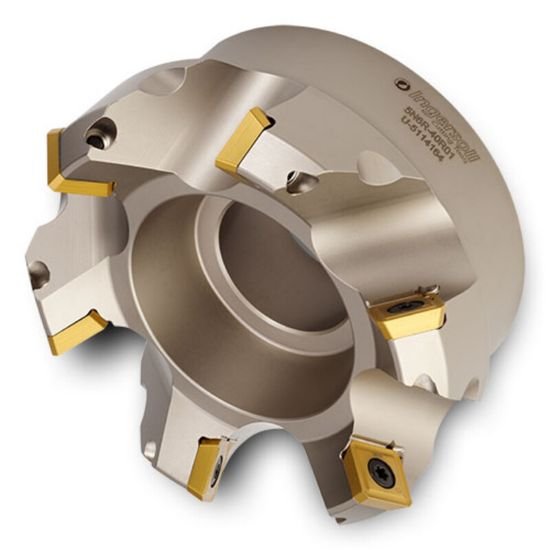

Picture of Ingersoll 5N6R-40R01 Milling Cutter 45.0° 4.000 Shell1.5000 6 Flute 0.41 Max DOC 2.375 OAL

Ingersoll 5N6R-40R01 Milling Cutter 45.0° 4.000 Shell1.5000 6 Flute 0.41 Max DOC 2.375 OAL

Part Number: ING3017426 ISO: 5N6R-40R01 ANSI:5N6R-40R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008822
Vendor: Sussex Tool and Supply
$942.67

Description

INGERSOLL 3017426 Square 45.0°, Face Mill SHELL1.5000 Positive 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Medium
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Flutes/Inserts 6
Tool Dia 4.0000 101.60MM
Insert Size Ic 15
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.4100
Cut Dia Max 4.7300 120.14MM
Materials & Finish
Tool Material Steel
