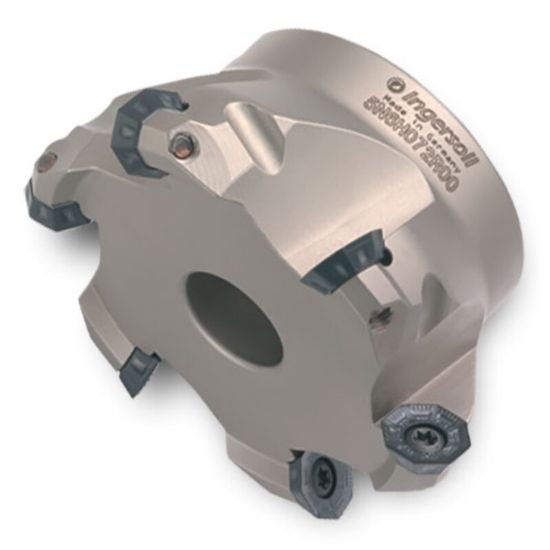

Picture of Ingersoll 5N6H-25R00 Milling Cutter 45.0° 2.500 Shell0.7500 6 Flute 0.13 Max DOC 1.570 OAL

Ingersoll 5N6H-25R00 Milling Cutter 45.0° 2.500 Shell0.7500 6 Flute 0.13 Max DOC 1.570 OAL

Part Number: ING3019947 ISO: 5N6H-25R00 ANSI:5N6H-25R00
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008897
Vendor: Sussex Tool and Supply
$641.20

Description

INGERSOLL 3019947 Octagonal 45.0°, Face Mill SHELL0.7500 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Medium
Insert Style OF
Insert Shape/Cutter Pocket Shape Octagonal
Insert Type Positive
Dimensions & Sizing
Overall Length 1.5700 39.88MM
Flutes/Inserts 6
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 5
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.1300
Cut Dia Max 2.7900 70.87MM
Materials & Finish
Tool Material Steel
