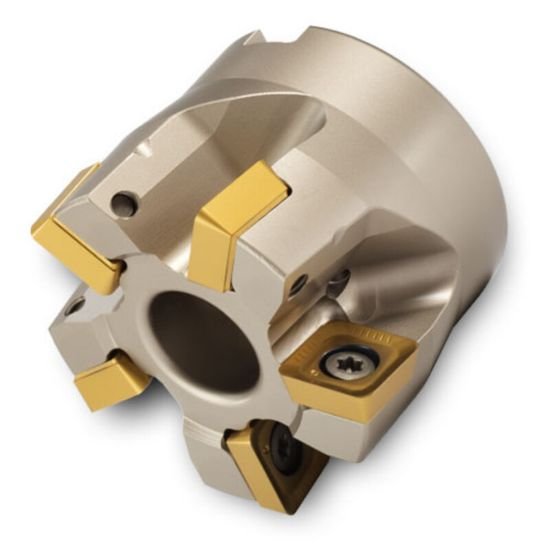

Picture of Ingersoll 5J5P-30R01 Milling Cutter 3.000 Shell1.0000 8 Flute Coolant 0.45 Max DOC 1.750 OAL

Ingersoll 5J5P-30R01 Milling Cutter 3.000 Shell1.0000 8 Flute Coolant 0.45 Max DOC 1.750 OAL

Part Number: ING2912696 ISO: 5J5P-30R01 ANSI:5J5P-30R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008450
Vendor: Sussex Tool and Supply
$961.33

Description

INGERSOLL 2912696 Square Feed Mill SHELL1.0000 Positive 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 8
Tool Dia 3.0000 76.20MM
Insert Size Ic 13
Performance & Capacity
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 0.4500
Max Ramp Angle 1.50°
Materials & Finish
Tool Material Steel
