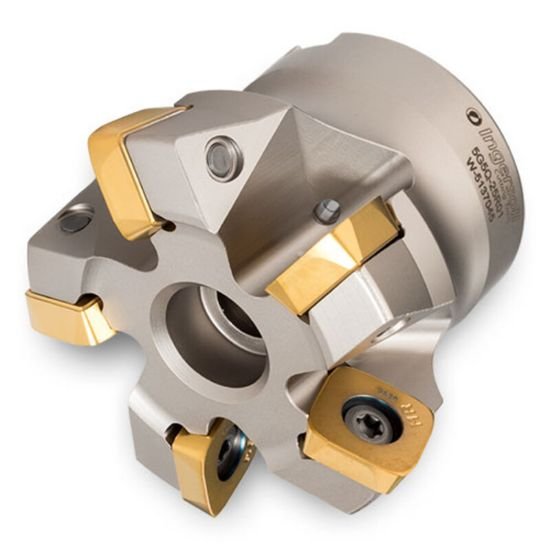

Ingersoll 5G5Q-25R01 Milling Cutter 2.500 Arbor 0.7500 5 Flute Coolant 0.107 Max DOC 2.000 OAL

Part Number: ING2922139 ISO: 5G5Q-25R01 ANSI:5G5Q-25R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$737.33
SKU: 1008601

Description

INGERSOLL 2922139 Square Feed Mill Arbor 0.7500 Positive 2.5000 63.50MM - 2-1/2 Cutter Dia
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 5
Tool Dia 2.5000 63.50MM - 2-1/2
Performance & Capacity
Cut Dia Min 1.6450 41.78MM
Depth Of Cut Max 0.1070
Cut Dia Max 2.5000 63.50MM - 2-1/2
Max Ramp Angle 3.30°
Materials & Finish
Tool Material Steel
