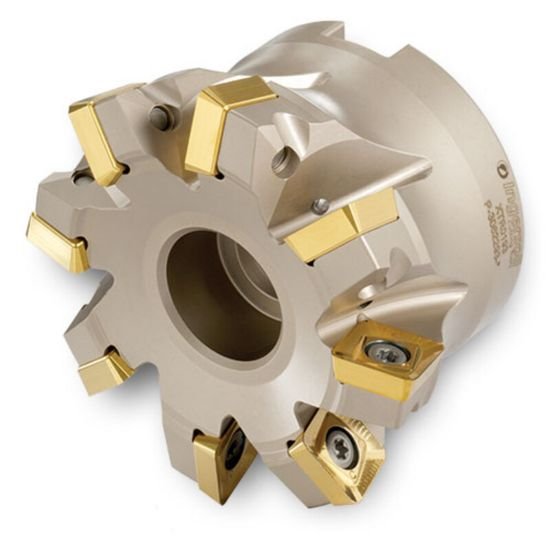

Picture of Ingersoll 5G5M-60R01 Milling Cutter 6.000 Shell1.5000 10 Flute 0.147 Max DOC 2.500 OAL

Ingersoll 5G5M-60R01 Milling Cutter 6.000 Shell1.5000 10 Flute 0.147 Max DOC 2.500 OAL

Part Number: ING3004766 ISO: 5G5M-60R01 ANSI:5G5M-60R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008701
Vendor: Sussex Tool and Supply
$1,642.67

Description

INGERSOLL 3004766 Square Feed Mill SHELL1.5000 Positive 6.0000 152.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Flutes/Inserts 10
Tool Dia 6.0000 152.40MM
Performance & Capacity
Cut Dia Min 4.7570 120.83MM
Depth Of Cut Max 0.1470
Cut Dia Max 6.0000 152.40MM
Max Ramp Angle 0.40°
Materials & Finish
Tool Material Steel
