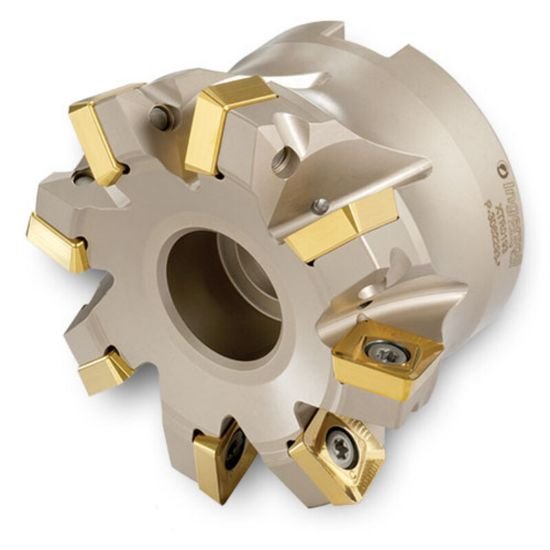

Picture of Ingersoll 5G5M-30R01 Milling Cutter 3.000 Shell1.0000 6 Flute Coolant 0.147 Max DOC 2.000 OAL

Ingersoll 5G5M-30R01 Milling Cutter 3.000 Shell1.0000 6 Flute Coolant 0.147 Max DOC 2.000 OAL

Part Number: ING3000000 ISO: 5G5M-30R01 ANSI:5G5M-30R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008645
Vendor: Sussex Tool and Supply
$907.20

Description

INGERSOLL 3000000 Square Feed Mill SHELL1.0000 Positive 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 6
Tool Dia 3.0000 76.20MM
Performance & Capacity
Cut Dia Min 1.7660 44.86MM
Depth Of Cut Max 0.1470
Cut Dia Max 3.0000 76.20MM
Max Ramp Angle 1.20°
Materials & Finish
Tool Material Steel
