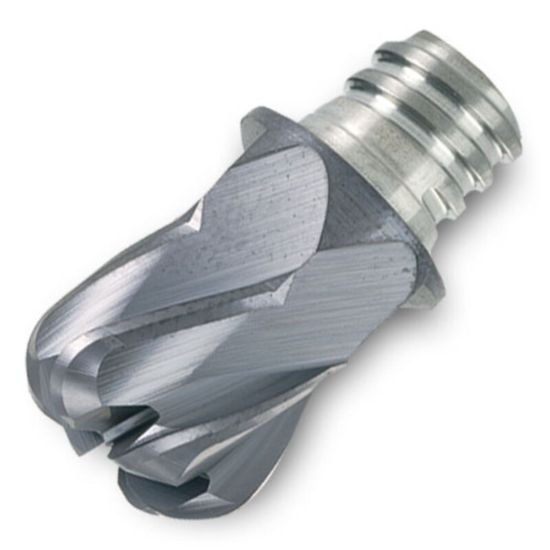

Ingersoll 48U-5027T8RB06 IN2005 Dia 1/2 SH T08 LOC 0.50End Mill,Replacable Head Torus Standard Helix Carbide TiAlN Single End Torus0.0620 1.57mm CHIPSURFER

Part Number: ING5840624

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1181041
$138.00
This product has a minimum quantity of 2
INGERSOLL 48U-5027T8RB06 IN2005 Standard Helix End Mill,Replacable Head Carbide TiAlN Torus 0.0620 1.57MM Torus Flutes 6 Single End CHIPSURFER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating Stainless Steel, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating TiAlN
Mach Side Connection Size T08
Coolant Thru Non Coolant
Flutes/Inserts 6
Tool Dia 0.5000 12.70MM - 1/2
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5000 12.70MM
End Of Tool Shape Torus
Cutter Style Screw On Corner Radius End Mill
Single/Double End Single End
Corner Radius 0.0620 1.57MM
Inch/Metric Inch
Helix Angle 30
Center Cutting Non Center Cutting
