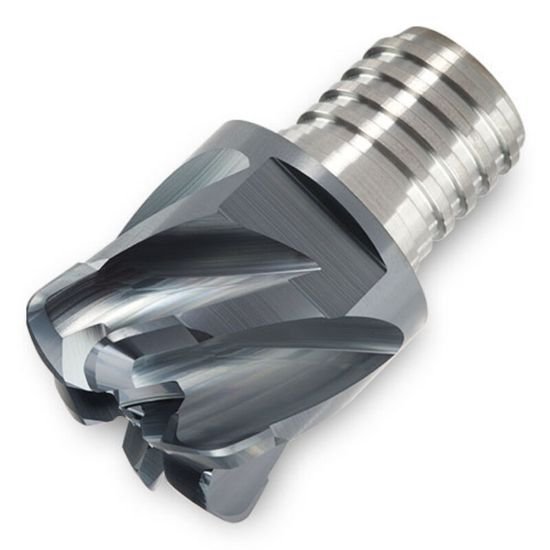

Picture of Ingersoll 48A-1004TURA20 IN2006 Dia 1 SH T15 LOC 1.00End Mill,Replacable Head Carbide TiAlN Single End High Feed0.1450 3.68mm CHIPSURFER

Ingersoll 48A-1004TURA20 IN2006 Dia 1 SH T15 LOC 1.00End Mill,Replacable Head Carbide TiAlN Single End High Feed0.1450 3.68mm CHIPSURFER

Part Number: ING5812897
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1181600
Vendor: Sussex Tool and Supply
$284.53

Description

INGERSOLL 48A-1004TURA20 IN2006 End Mill,Replacable Head Carbide TiAlN High Feed 0.1450 3.68MM Flutes 6 Single End CHIPSURFER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Coolant Thru Thru Coolant
Length Type STANDARD
End Of Tool Shape High Feed
Cutter Style Screw On Feed Mill
Single/Double End Single End
Inch/Metric Inch
Dimensions & Sizing
Flutes/Inserts 6
Tool Dia 1.0000 25.40MM
Length Of Cut 1.0000 25.40MM
Geometry & Angles
Corner Radius 0.1450 3.68MM
Helix Angle 45
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
