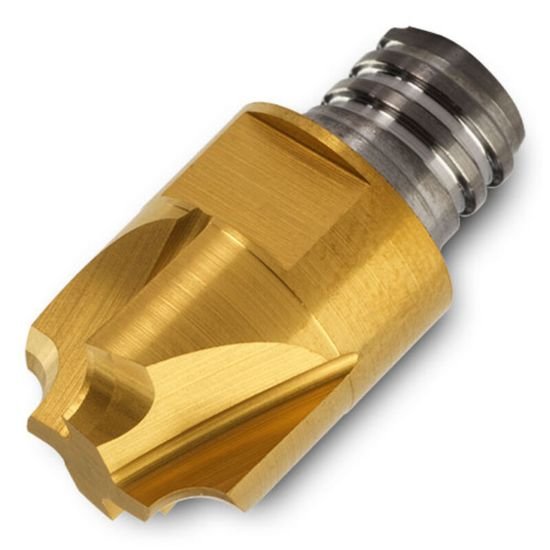

Picture of Ingersoll 47R-4806T8RA09 IN2505 Dia 31/64 SH T08 LOC 0.2950Corner Rounder,Replacable Head Carbide TiAIn + TiN Single End Corner Rounder0.0930 2.36mm CHIPSURFER

Ingersoll 47R-4806T8RA09 IN2505 Dia 31/64 SH T08 LOC 0.2950Corner Rounder,Replacable Head Carbide TiAIn + TiN Single End Corner Rounder0.0930 2.36mm CHIPSURFER

Part Number: ING2916283
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1180951
Vendor: Sussex Tool and Supply
$138.60
This product has a minimum quantity of 2

Description

INGERSOLL 47R-4806T8RA09 IN2505 Corner Rounder,Replacable Head Carbide TiAIN + TiN Corner Rounder 0.0930 2.36MM Flutes 4 Single End CHIPSURFER Carbide TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Screw On Head, Corner Rounder
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Rounder
Cutter Style Screw On Corner Rounding
Single/Double End Single End
Inch/Metric Inch
Dimensions & Sizing
Flutes/Inserts 4
Tool Dia 0.4844 12.30MM - 31/64
Length Of Cut 0.2950 7.49MM
Geometry & Angles
Corner Radius 0.0930 2.36MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAIN + TiN
