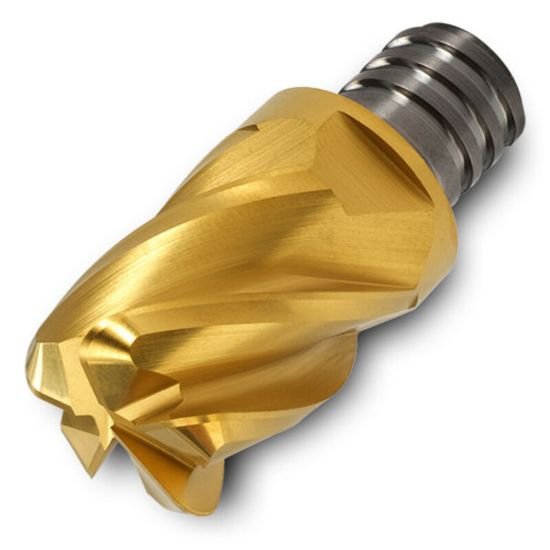

Picture of Ingersoll 47DE1090TURQ12 IN2505 Dia 1 SH T15 LOC 1.00End Mill,Replacable Head Standard Flute Variable Helix Carbide TiAIn + TiN Single End Corner Radius0.1200 3.05mm CHIPSURFER

Ingersoll 47DE1090TURQ12 IN2505 Dia 1 SH T15 LOC 1.00End Mill,Replacable Head Standard Flute Variable Helix Carbide TiAIn + TiN Single End Corner Radius0.1200 3.05mm CHIPSURFER

Part Number: ING2917694
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$329.27
SKU: 1181595

Description

INGERSOLL 47DE1090TURQ12 IN2505 Variable Helix End Mill,Replacable Head Carbide TiAIN + TiN Corner Radius 0.1200 3.05MM Standard Flute Flutes 4 Single End CHIPSURFER Carbide TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Screw On Corner Radius End Mill
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Length Of Cut 1.0000 25.40MM
Geometry & Angles
Corner Radius 0.1200 3.05MM
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAIN + TiN
