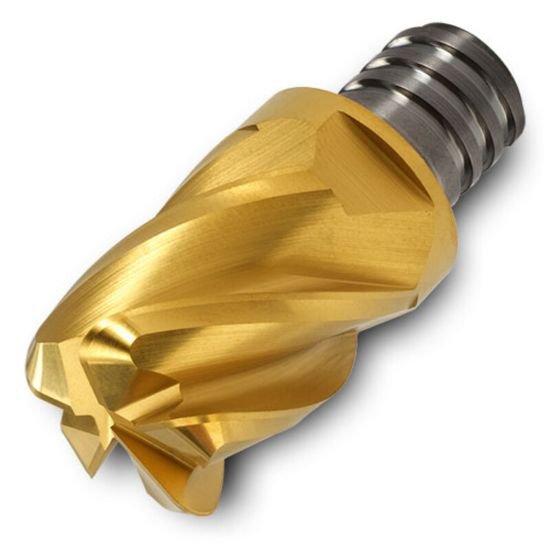

Picture of Ingersoll 47D-7581TSRQ25 IN2505 Dia 3/4 SH T12 LOC 0.7500End Mill,Replacable Head Standard Flute Variable Helix Carbide TiAIn + TiN Single End Corner Radius0.2500 6.35mm CHIPSURFER

Ingersoll 47D-7581TSRQ25 IN2505 Dia 3/4 SH T12 LOC 0.7500End Mill,Replacable Head Standard Flute Variable Helix Carbide TiAIn + TiN Single End Corner Radius0.2500 6.35mm CHIPSURFER

Part Number: ING2915978

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1181329
Vendor: Sussex Tool and Supply
$322.00
This product has a minimum quantity of 2
INGERSOLL 47D-7581TSRQ25 IN2505 Variable Helix End Mill,Replacable Head Carbide TiAIN + TiN Corner Radius 0.2500 6.35MM Standard Flute Flutes 4 Single End CHIPSURFER Carbide TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating Stainless Steel, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating TiAIN + TiN
Mach Side Connection Size T12
Coolant Thru Non Coolant
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.7500 19.05MM
End Of Tool Shape CORNER RADIUS
Cutter Style Screw On Corner Radius End Mill
Single/Double End Single End
Corner Radius 0.2500 6.35MM
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
