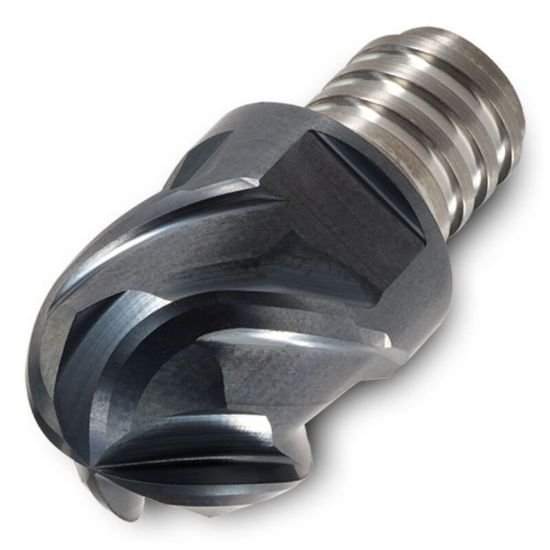

Picture of Ingersoll 47B-6247TRRQ08 IN2006 Dia 5/8 SH T10 LOC 0.4700End Mill,Replacable Head Standard Flute Variable Helix Carbide TiAlN Single End Ball NoseBall CHIPSURFER

Ingersoll 47B-6247TRRQ08 IN2006 Dia 5/8 SH T10 LOC 0.4700End Mill,Replacable Head Standard Flute Variable Helix Carbide TiAlN Single End Ball NoseBall CHIPSURFER

Part Number: ING2928030
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$219.27
This product has a minimum quantity of 2
SKU: 1181143

Description

INGERSOLL 47B-6247TRRQ08 IN2006 Variable Helix End Mill,Replacable Head Carbide TiAlN Ball Nose 4 Flute Single End CHIPSURFER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Screw On Ball Inserts
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Shank/Pilot Dia T10
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.4700 11.94MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
