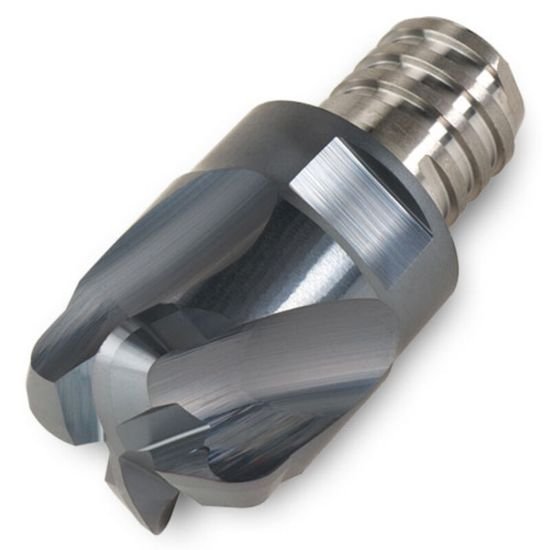

Picture of Ingersoll 47A10001T6RA20 IN2006 Dia 10mm SH T06 LOC 0.3937End Mill,Replacable Head Carbide TiAlN Single End High Feed0.0791 2.01mm CHIPSURFER

Ingersoll 47A10001T6RA20 IN2006 Dia 10mm SH T06 LOC 0.3937End Mill,Replacable Head Carbide TiAlN Single End High Feed0.0791 2.01mm CHIPSURFER

Part Number: ING5812891
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1185632
Vendor: Sussex Tool and Supply
$91.67
This product has a minimum quantity of 2

Description

INGERSOLL 47A10001T6RA20 IN2006 End Mill,Replacable Head Carbide TiAlN High Feed 0.0791 2.01MM Flutes 4 Single End CHIPSURFER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape High Feed
Cutter Style Screw On Feed Mill
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Flutes/Inserts 4
Tool Dia 0.3937 10.00MM
Length Of Cut 0.3937 10.00MM
Geometry & Angles
Corner Radius 0.0791 2.01MM
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
