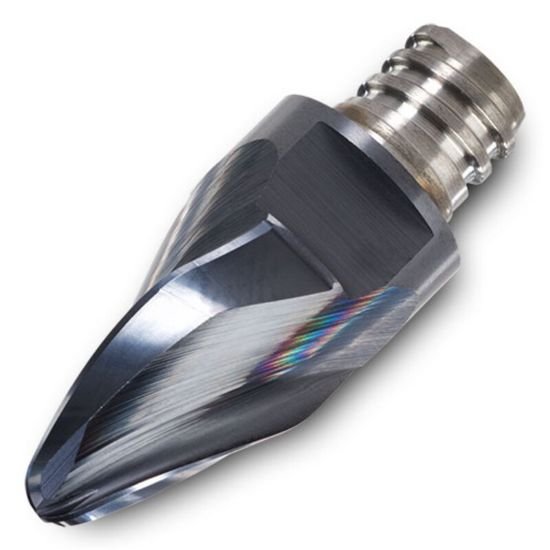

Ingersoll 46W12013T8RB030 IN2005 Dia 12mm SH T08 LOC 0.4724End Mill,Replacable Head Taper Form Carbide TiAlN Single End Carbide Ball OvalBall CHIPSURFER

Part Number: ING5890825

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1185733
$253.00
This product has a minimum quantity of 2
INGERSOLL 46W12013T8RB030 IN2005 End Mill,Replacable Head Carbide TiAlN Carbide Ball Oval Ball Taper Form Flutes 3 Single End CHIPSURFER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating Stainless Steel, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating TiAlN
Mach Side Connection Size T08
Coolant Thru Non Coolant
Flutes/Inserts 3
Tool Dia 0.4724 12.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.4724 12.00MM
End Of Tool Shape Ball Oval
Cutter Style Taper Form
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
