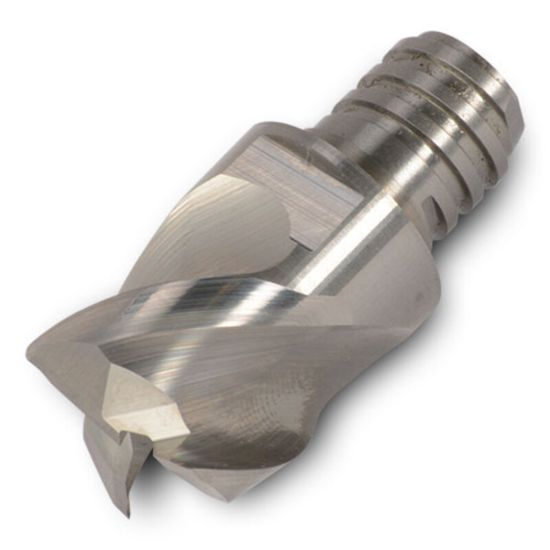

INGERSOLL 46D-7550TSRD09-P IN05S DIA 3/4 SH T12 LOC 0.7500End Mill,Replacable Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0940 2.39MM CHIPSURFER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5812679
Delivery date: 3-5 days
$171.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 4 Standard Helix
Package Size 2
Additional Key Information 2 Corner Radius
Material # Material#25, Material#20, Material#42
Sold by Pieces 2
Additional Key Information 3 Standard Flute
Application Profile Milling, Slot Milling, Side Milling
Additional Key Information 1 End Mill, Screw On Head
Performance Rating High Performance
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Length Type Standard
Length Of Cut 0.7500 19.05MM
Cutter Style Screw On Corner Radius End Mill
Single/Double End Single End
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side T12
Flutes/Inserts 3
End Of Tool Shape Corner Radius
Corner Radius 0.0940 2.39MM
Machine Side Connection Size T12
Helix Angle 30°
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Screw On
Tool Material Carbide
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
