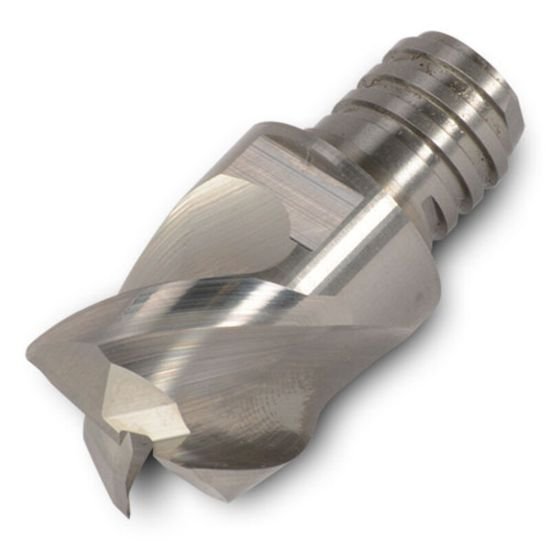

Picture of Ingersoll 46D-3120TQRD02-P IN05S Dia 5/16 SH T05 LOC 0.3120End Mill,Replacable Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0200 0.51mm CHIPSURFER

Ingersoll 46D-3120TQRD02-P IN05S Dia 5/16 SH T05 LOC 0.3120End Mill,Replacable Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0200 0.51mm CHIPSURFER

Part Number: ING5840516

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1290164
Vendor: Sussex Tool and Supply
$62.30
This product has a minimum quantity of 2
INGERSOLL 46D-3120TQRD02-P IN05S Standard Helix End Mill,Replacable Head Carbide Uncoated Corner Radius 0.0200 0.51MM Standard Flute Flutes 3 Single End CHIPSURFER Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size T05
Coolant Thru Non Coolant
Flutes/Inserts 3
Tool Dia 0.3125 7.94MM - 5/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3120 7.92MM
End Of Tool Shape CORNER RADIUS
Cutter Style Screw On Corner Radius End Mill
Single/Double End Single End
Corner Radius 0.0200 0.51MM
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
