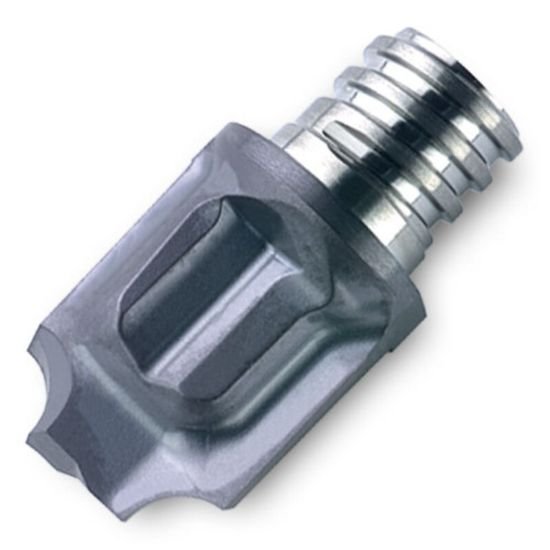

Ingersoll 45R12012T8RA40 IN2005 Dia 4.70mm SH T08 LOC 0.1850Corner Rounder,Replacable Head Carbide TiAlN Single End Corner Rounder0.1575 4.00mm CHIPSURFER

Part Number: ING5840422

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1290156
$103.00
This product has a minimum quantity of 2
INGERSOLL 45R12012T8RA40 IN2005 Corner Rounder,Replacable Head Carbide TiAlN Corner Rounder 0.1575 4.00MM Flutes 2 Single End CHIPSURFER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Screw On Head, Corner Rounder
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating Stainless Steel, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating TiAlN
Mach Side Connection Size T08
Coolant Thru Non Coolant
Flutes/Inserts 2
Tool Dia 0.1850 4.70MM - #13
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.1850 4.70MM
End Of Tool Shape Corner Rounder
Cutter Style Screw On Corner Rounding
Single/Double End Single End
Corner Radius 0.1575 4.00MM
Inch/Metric Metric
Center Cutting Center Cutting
