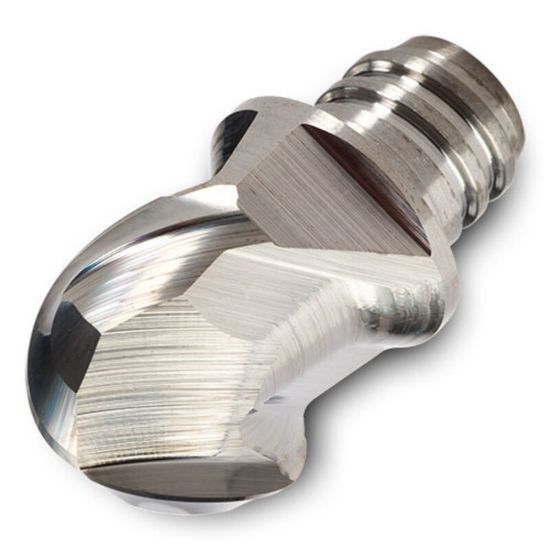

INGERSOLL 45B10007T6RB13 IN05S DIA 10MM SH T06 LOC 0.3937End Mill,Replacable Head Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall CHIPSURFER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5871065
Delivery date: 3-5 days
$76.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 3 Standard Flute
Application Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling, Side Milling
Additional Key Information 2 Ball Nose
Additional Key Information 4 Standard Helix
Package Size 2
Shipping State Illinois
Material # Material#42, Material#25, Material#20
Additional Key Information 1 Screw On Head, End Mill
Performance Rating High Performance
Sold by Pieces 2
Uncategorized
Made In USA No
Dimensional Specifications
Single/Double End Single End
Flutes/Inserts 2
Cutter Style Screw On Ball Inserts
Inch/Metric Metric
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side T06
Length Of Cut 0.3937 10.00MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Screw On
Machine Side Connection Size T06
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
