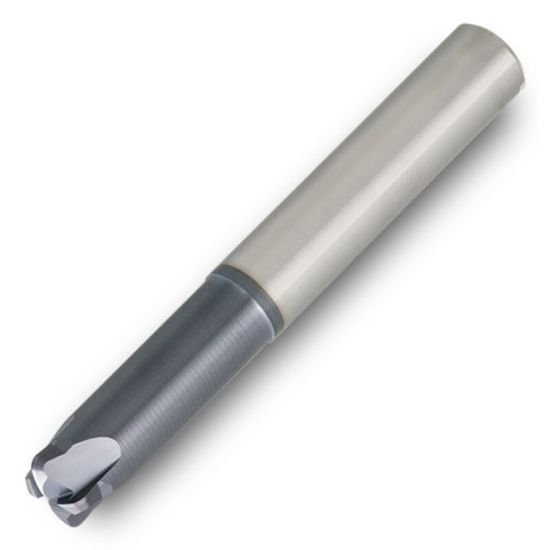

Picture of Ingersoll 45A05003T7RA090 IN2003 Dia 5mm SH 0.1969 LOC 0.0118 OAL2.2441 End Mill Carbide TiAlN Single End High Feed0.0354 0.90mm CHIPSURFER

Ingersoll 45A05003T7RA090 IN2003 Dia 5mm SH 0.1969 LOC 0.0118 OAL2.2441 End Mill Carbide TiAlN Single End High Feed0.0354 0.90mm CHIPSURFER

Part Number: ING2944250 0.197 x 0.236 x 0.012 x 2.244
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1290211
Vendor: Sussex Tool and Supply
$82.13

Description

INGERSOLL 45A05003T7RA090 IN2003 End Mill Carbide TiAlN High Feed 0.0354 0.90MM Flutes 2 Single End CHIPSURFER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single/Double End Single End
Inch/Metric Metric
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 2.2441 57.00MM
Shank/Pilot Dia 0.1969 5.00MM
Flutes/Inserts 2
Tool Dia 0.1969 5.00MM
Length Of Cut 0.0118 0.30MM
Geometry & Angles
Corner Radius 0.0354 0.90MM
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
