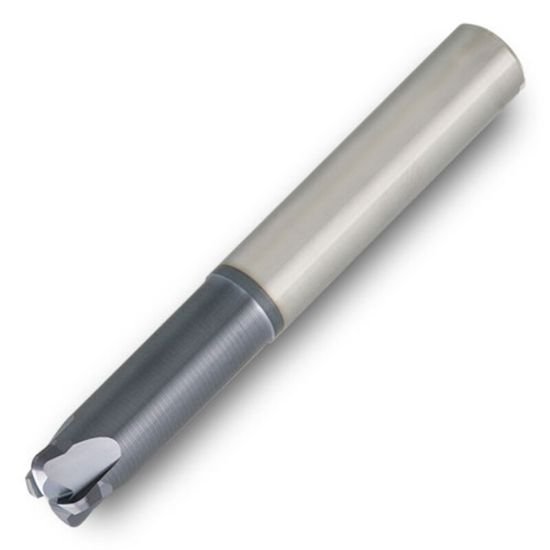

Picture of Ingersoll 45A02001T7RA030 IN2003 Dia 2mm SH 0.0787 LOC 0.0047 OAL 1.9685 End Mill Carbide TiAlN Single End High Feed0.0118 0.30mm CHIPSURFER

Ingersoll 45A02001T7RA030 IN2003 Dia 2mm SH 0.0787 LOC 0.0047 OAL 1.9685 End Mill Carbide TiAlN Single End High Feed0.0118 0.30mm CHIPSURFER

Part Number: ING2944247 0.079 x 0.236 x 0.005 x 1.969
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$55.59
SKU: 1290208

Description

INGERSOLL 45A02001T7RA030 IN2003 End Mill Carbide TiAlN High Feed 0.0118 0.30MM 2 Flute Single End CHIPSURFER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single/Double End Single End
Inch/Metric Metric
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.0787 2.00MM
Length Of Cut 0.0047 0.12MM
Geometry & Angles
Corner Radius 0.0118 0.30MM
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
