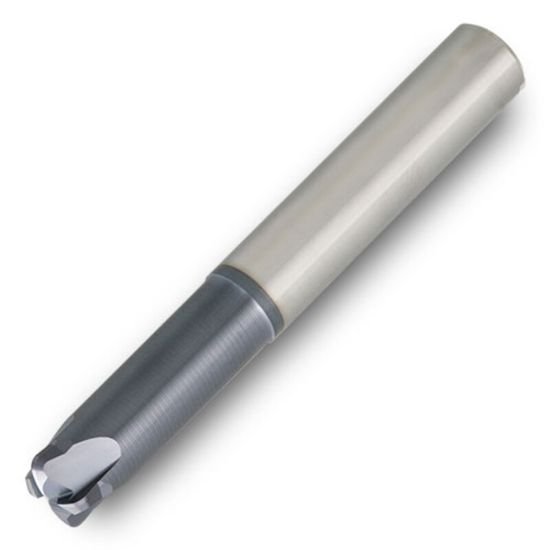

Picture of Ingersoll 45A01000T7RA015 IN2003 Dia 1mm SH 0.0394 LOC 0.0020 OAL1.9685 End Mill Carbide TiAlN Single End High Feed0.0039 0.10mm CHIPSURFER

Ingersoll 45A01000T7RA015 IN2003 Dia 1mm SH 0.0394 LOC 0.0020 OAL1.9685 End Mill Carbide TiAlN Single End High Feed0.0039 0.10mm CHIPSURFER

Part Number: ING2944246 0.039 x 0.236 x 0.002 x 1.969

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1290207
Vendor: Sussex Tool and Supply
$0.00
INGERSOLL 45A01000T7RA015 IN2003 End Mill Carbide TiAlN High Feed 0.0039 0.10MM Flutes 2 Single End CHIPSURFER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating TiAlN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 1.9685 50.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.0393 1.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.0020 0.05MM
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single/Double End Single End
Corner Radius 0.0039 0.10MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Non Center Cutting
