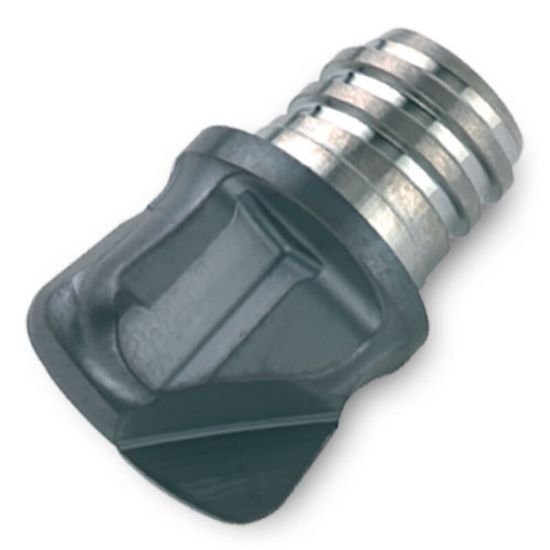

Picture of Ingersoll 45A-3703T6RA06 IN2005 Dia 3/8 SH T06 LOC 0.3750End Mill,Replacable Head Carbide TiAlN Single End High Feed0.0590 1.50mm CHIPSURFER

Ingersoll 45A-3703T6RA06 IN2005 Dia 3/8 SH T06 LOC 0.3750End Mill,Replacable Head Carbide TiAlN Single End High Feed0.0590 1.50mm CHIPSURFER

Part Number: ING5821093

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1180800
Vendor: Sussex Tool and Supply
$77.20
This product has a minimum quantity of 2
INGERSOLL 45A-3703T6RA06 IN2005 End Mill,Replacable Head Carbide TiAlN High Feed 0.0590 1.50MM Flutes 2 Single End CHIPSURFER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating Stainless Steel, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating TiAlN
Mach Side Connection Size T06
Coolant Thru Non Coolant
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape High Feed
Cutter Style Screw On Feed Mill
Single/Double End Single End
Corner Radius 0.0590 1.50MM
Inch/Metric Inch
