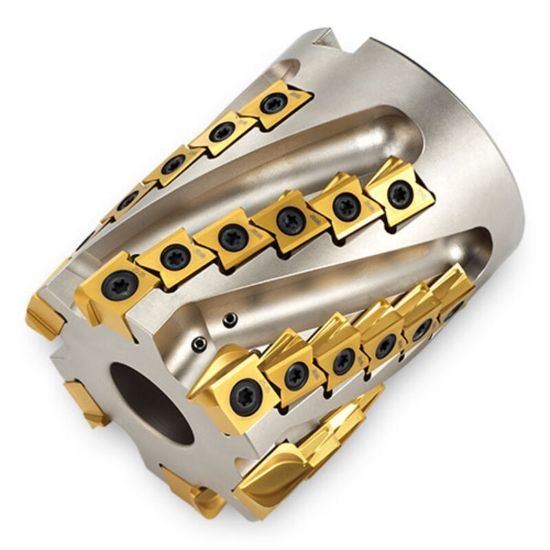

Picture of Ingersoll 2XJ3J-20027D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 1.971 Max DOC 2.750 OAL

Ingersoll 2XJ3J-20027D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 1.971 Max DOC 2.750 OAL

Part Number: ING2923692 ISO: 2XJ3J-20027D1R01 ANSI:2XJ3J-20027D1R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008621
Vendor: Sussex Tool and Supply
$1,428.00

Description

INGERSOLL 2923692 90.0°, Corn Cob End Mill Weldon 0.7500 Negative 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style IP
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Dimensions & Sizing
Overall Length 2.7500 69.85MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 2.0000 50.80MM
Insert Size Ic 32, 42
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 1.9710
Materials & Finish
Tool Material Steel
