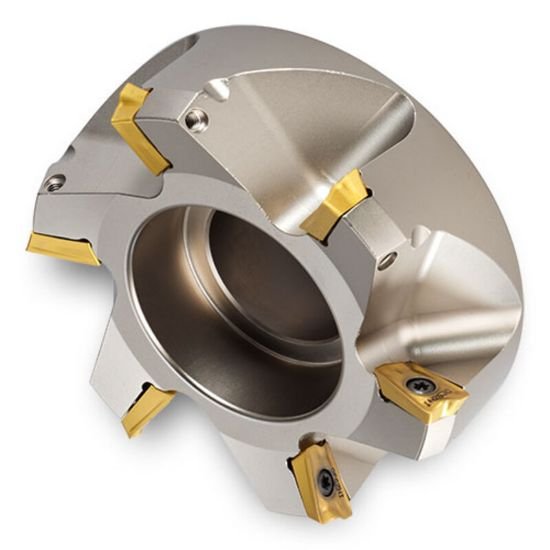

Picture of Ingersoll 2L1G-40R01 Milling Cutter 75.0° 4.000 Shell1.5000 6 Flute 0.15 Max DOC 2.000 OAL

Ingersoll 2L1G-40R01 Milling Cutter 75.0° 4.000 Shell1.5000 6 Flute 0.15 Max DOC 2.000 OAL

Part Number: ING2923796 ISO: 2L1G-40R01 ANSI:2L1G-40R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008623
Vendor: Sussex Tool and Supply
$1,045.33

Description

INGERSOLL 2923796 Parallelogram 75.0°, Face Mill SHELL1.5000 Positive 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 6
Tool Dia 4.0000 101.60MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 75.0°
Performance & Capacity
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.1500
Cut Dia Max 4.3500 110.49MM
Materials & Finish
Tool Material Steel
