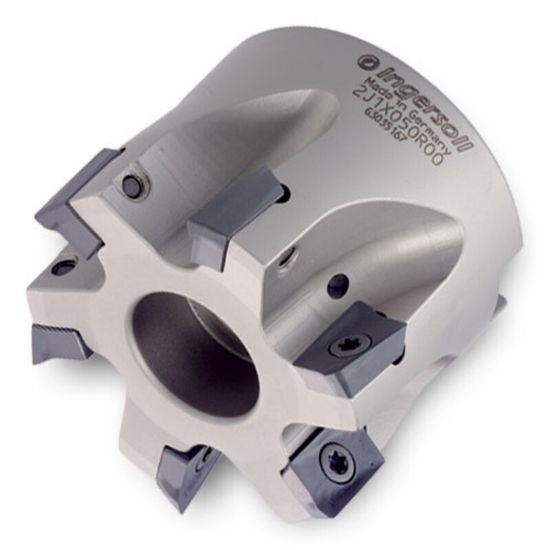

Picture of Ingersoll 2J1X-15R01 Milling Cutter 90.0° 1.500 Arbor 0.5000 4 Flute 0.5 Max DOC 1.570 OAL

Ingersoll 2J1X-15R01 Milling Cutter 90.0° 1.500 Arbor 0.5000 4 Flute 0.5 Max DOC 1.570 OAL

Part Number: ING3024840 ISO: 2J1X-15R01 ANSI:2J1X-15R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$557.20
SKU: 1008975

Description

INGERSOLL 3024840 Parallelogram 90.0°, Face Mill Arbor 0.5000 Positive 1.5000 38.10MM - 1-1/2 Cutter Dia
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 1.5700 39.88MM
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.5000
Max Ramp Angle 3.70°
Materials & Finish
Tool Material Steel
