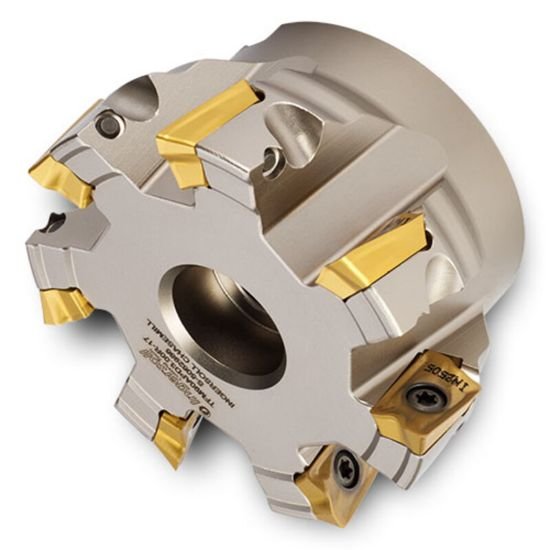

Picture of Ingersoll 2J1G050R01 Milling Cutter 90.0° 1.967 Shell0.8661 5 Flute Coolant 0.6299 Max DOC 1.574 OAL

Ingersoll 2J1G050R01 Milling Cutter 90.0° 1.967 Shell0.8661 5 Flute Coolant 0.6299 Max DOC 1.574 OAL

Part Number: ING3027842 ISO: 2J1G050R01 ANSI:2J1G050R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009095
Vendor: Sussex Tool and Supply
$534.80

Description

INGERSOLL 3027842 Parallelogram 90.0°, Face Mill SHELL0.8661 Positive 1.9670 49.96MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 1.5748 40.00MM
Flutes/Inserts 5
Tool Dia 1.9670 49.96MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.9690 50.01MM
Depth Of Cut Max 0.6299
Max Ramp Angle 4.40°
Materials & Finish
Tool Material Steel
