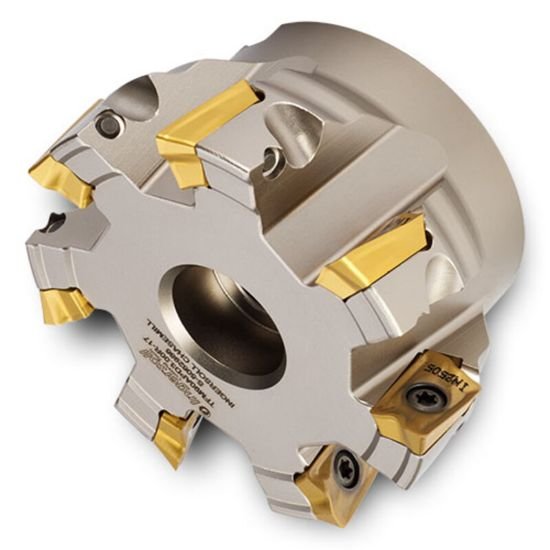

Picture of Ingersoll 2J1G-80R01 Milling Cutter 90.0° 8.000 Shell2.5000 12 Flute 0.63 Max DOC 2.370 OAL

Ingersoll 2J1G-80R01 Milling Cutter 90.0° 8.000 Shell2.5000 12 Flute 0.63 Max DOC 2.370 OAL

Part Number: ING3018676 ISO: 2J1G-80R01 ANSI:2J1G-80R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008852
Vendor: Sussex Tool and Supply
$1,988.00

Description

INGERSOLL 3018676 Parallelogram 90.0°, Face Mill SHELL2.5000 Positive 8.0000 203.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 2.3700 60.20MM
Shank/Pilot Dia 2.5000 63.50MM
Flutes/Inserts 12
Tool Dia 8.0000 203.20MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 8.0000 203.20MM
Depth Of Cut Max 0.6300
Max Ramp Angle 0.50°
Materials & Finish
Tool Material Steel
