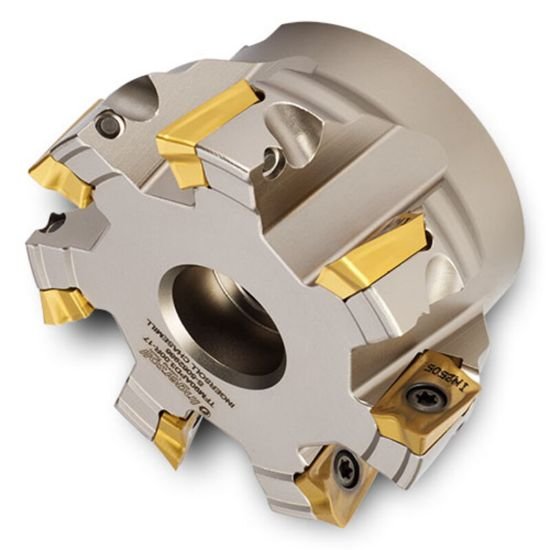

Picture of Ingersoll 2J1G-60R02 Milling Cutter 90.0° 6.000 Shell2.0000 8 Flute 0.63 Max DOC 2.000 OAL

Ingersoll 2J1G-60R02 Milling Cutter 90.0° 6.000 Shell2.0000 8 Flute 0.63 Max DOC 2.000 OAL

Part Number: ING3018674 ISO: 2J1G-60R02 ANSI:2J1G-60R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008850
Vendor: Sussex Tool and Supply
$1,400.00
INGERSOLL 3018674 Parallelogram 90.0°, Face Mill SHELL2.0000 Positive 6.0000 152.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 2.0000 50.80MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Flutes/Inserts 8
Tool Dia 6.0000 152.40MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Finishing, Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 17
Cut Dia Min 6.0000 152.40MM
Depth Of Cut Max 0.6300
Cutting Edge Angle 90.0°
Max Ramp Angle 1.00°
