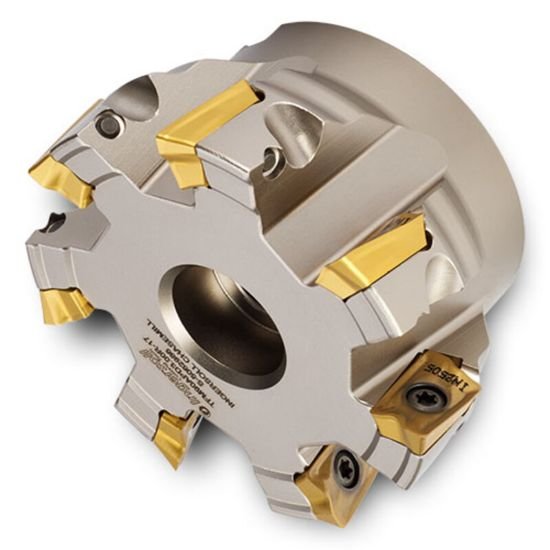

Picture of Ingersoll 2J1G-50R02 Milling Cutter 90.0° 5.000 Shell1.5000 9 Flute Coolant 0.63 Max DOC 2.375 OAL

Ingersoll 2J1G-50R02 Milling Cutter 90.0° 5.000 Shell1.5000 9 Flute Coolant 0.63 Max DOC 2.375 OAL

Part Number: ING2917449 ISO: 2J1G-50R02 ANSI:2J1G-50R02
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008560
Vendor: Sussex Tool and Supply
$1,325.33

Description

INGERSOLL 2917449 Parallelogram 90.0°, Face Mill SHELL1.5000 Positive 5.0000 127.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Flutes/Inserts 9
Tool Dia 5.0000 127.00MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 5.0000 127.00MM
Depth Of Cut Max 0.6300
Max Ramp Angle 1.40°
Materials & Finish
Tool Material Steel
