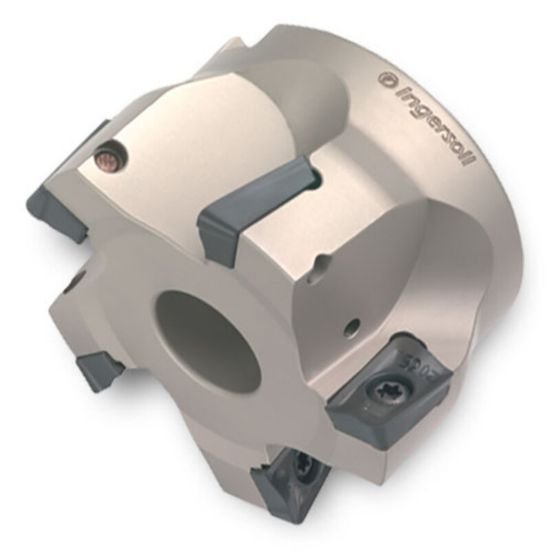

Picture of Ingersoll 2J1E-50R02 Milling Cutter 90.0° 5.000 Shell1.5000 9 Flute 0.66 Max DOC 2.000 OAL

Ingersoll 2J1E-50R02 Milling Cutter 90.0° 5.000 Shell1.5000 9 Flute 0.66 Max DOC 2.000 OAL

Part Number: ING3012942 ISO: 2J1E-50R02 ANSI:2J1E-50R02
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008771
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

INGERSOLL 3012942 Parallelogram 90.0°, Face Mill SHELL1.5000 Positive 5.0000 127.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 9
Tool Dia 5.0000 127.00MM
Insert Size Ic 18
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 5.0000 127.00MM
Depth Of Cut Max 0.6600
Max Ramp Angle 0.90°
Materials & Finish
Tool Material Steel
