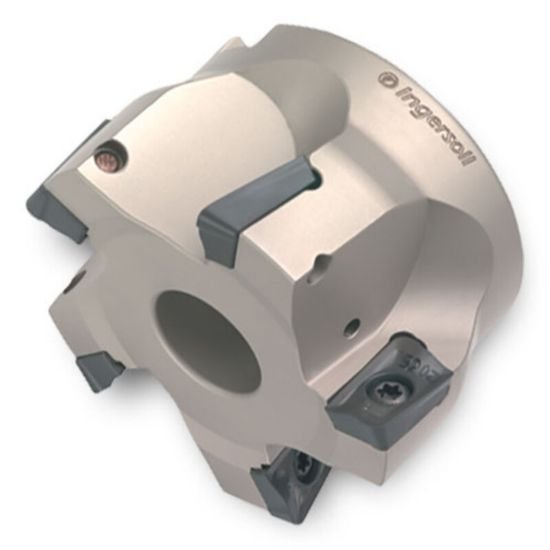

Picture of Ingersoll 2J1E-30R02 Milling Cutter 90.0° 3.000 Shell1.0000 7 Flute Coolant 0.66 Max DOC 1.750 OAL

Ingersoll 2J1E-30R02 Milling Cutter 90.0° 3.000 Shell1.0000 7 Flute Coolant 0.66 Max DOC 1.750 OAL

Part Number: ING3012938 ISO: 2J1E-30R02 ANSI:2J1E-30R02
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008769
Vendor: Sussex Tool and Supply
$980.00

Description

INGERSOLL 3012938 Parallelogram 90.0°, Face Mill SHELL1.0000 Positive 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 7
Tool Dia 3.0000 76.20MM
Insert Size Ic 18
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 0.6600
Max Ramp Angle 1.80°
Materials & Finish
Tool Material Steel
