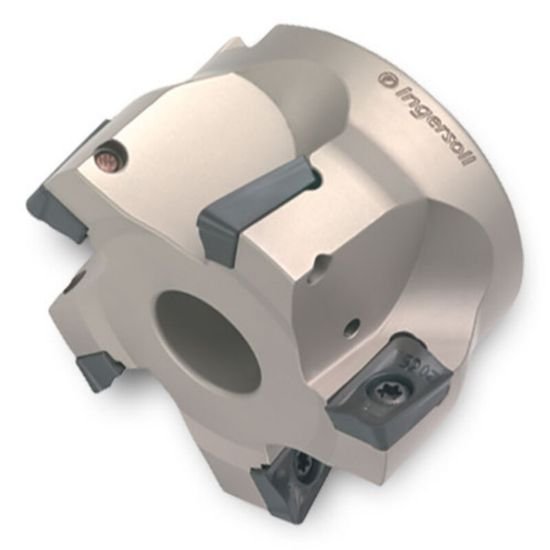

Picture of Ingersoll 2J1E-25R02 Milling Cutter 90.0° 2.500 Shell0.7500 6 Flute Coolant 0.66 Max DOC 1.570 OAL

Ingersoll 2J1E-25R02 Milling Cutter 90.0° 2.500 Shell0.7500 6 Flute Coolant 0.66 Max DOC 1.570 OAL

Part Number: ING3017401 ISO: 2J1E-25R02 ANSI:2J1E-25R02
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008818
Vendor: Sussex Tool and Supply
$744.80

Description

INGERSOLL 3017401 Parallelogram 90.0°, Face Mill SHELL0.7500 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 1.5700 39.88MM
Flutes/Inserts 6
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 18
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.6600
Max Ramp Angle 2.60°
Materials & Finish
Tool Material Steel
