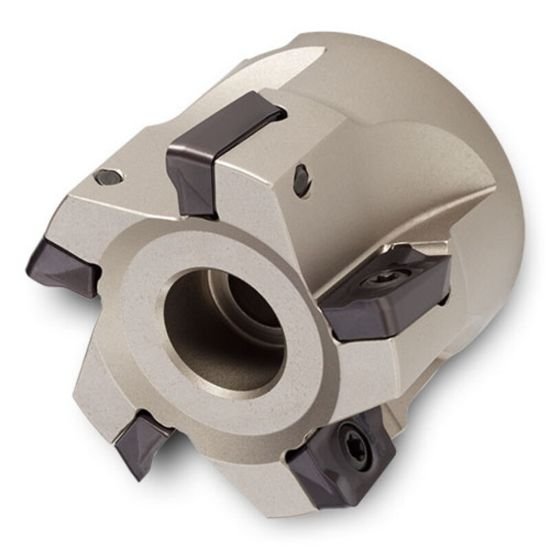

Picture of Ingersoll 2J1B-40R01 Milling Cutter 90.0° 4.000 Shell1.5000 8 Flute 0.6 Max DOC 2.000 OAL

Ingersoll 2J1B-40R01 Milling Cutter 90.0° 4.000 Shell1.5000 8 Flute 0.6 Max DOC 2.000 OAL

Part Number: ING3001329 ISO: 2J1B-40R01 ANSI:2J1B-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008657
Vendor: Sussex Tool and Supply
$1,090.00
INGERSOLL 3001329 Parallelogram 90.0°, Face Mill SHELL1.5000 Positive 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.5000 38.10MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Flutes/Inserts 8
Tool Dia 4.0000 101.60MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Finishing, Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 16
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.6000
Cutting Edge Angle 90.0°
