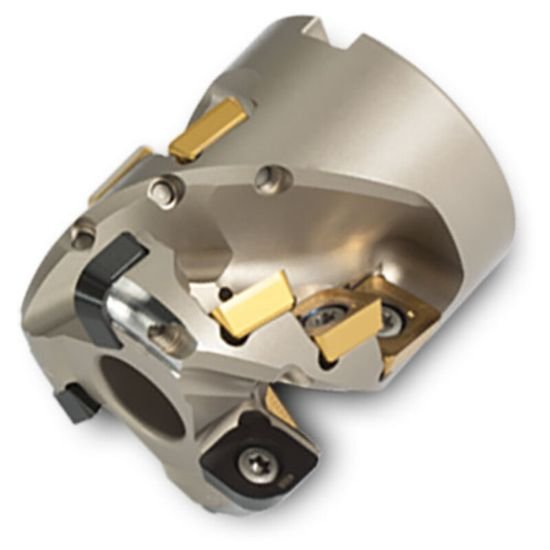

Picture of Ingersoll 25J3P-20035D1R02-R Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 2.62 Max DOC 3.500 OAL

Ingersoll 25J3P-20035D1R02-R Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 2.62 Max DOC 3.500 OAL

Part Number: ING2907137 ISO: 25J3P-20035D1R02-R ANSI:25J3P-20035D1R02-R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008311
Vendor: Sussex Tool and Supply
$1,670.00
INGERSOLL 2907137 Square 90.0°, Corn Cob End Mill Weldon 0.7500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 3.5000 88.90MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 2.0000 50.80MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 13
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 2.6200
Cutting Edge Angle 90.0°
