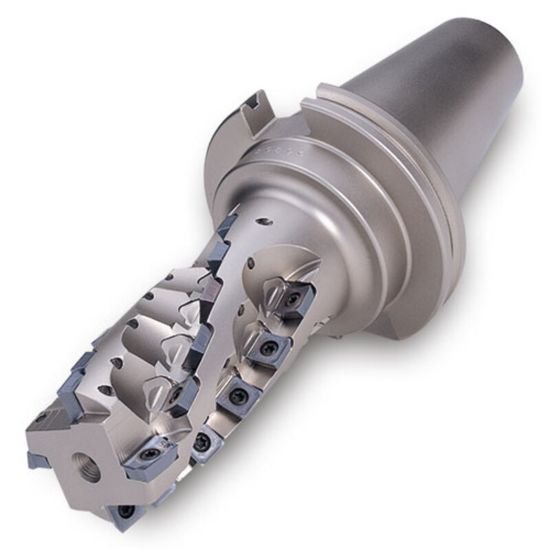

Picture of Ingersoll 23J6G-2006148R00 Milling Cutter 90.0°, Corn Cob 2.000 CAT50 4 Flute 4.04 Max DOC 10.12 OAL

Ingersoll 23J6G-2006148R00 Milling Cutter 90.0°, Corn Cob 2.000 CAT50 4 Flute 4.04 Max DOC 10.12 OAL

Part Number: ING3023469 ISO: 23J6G-2006148R00 ANSI:23J6G-2006148R00
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008932
Vendor: Sussex Tool and Supply
$2,240.00

Description

INGERSOLL 3023469 Parallelogram 90.0°, Corn Cob Machine Taper CAT50 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Non Coolant
Type Of Tool Machine Taper
Insert/Tool TOOL
Cut Type Roughing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 10.1200 257.05MM
Flutes/Inserts 4
Tool Dia 2.0000 50.80MM
Insert Size Ic 18
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 4.0400
Materials & Finish
Tool Material Steel
