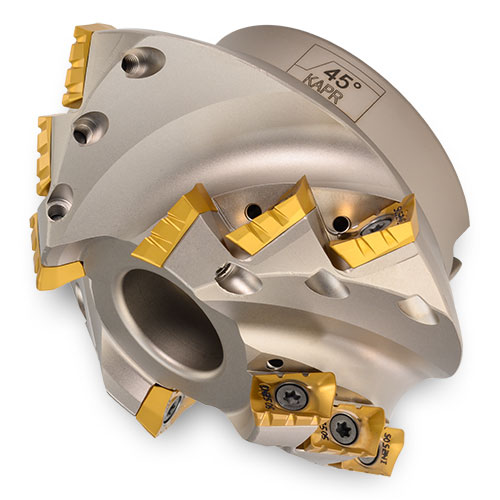

Picture of Ingersoll 22N3R-17020D3R01 Milling Cutter 45.0° 1.750 Cylindrical1.0000 4 Flute Coolant 0.933 Max DOC 2.000 OAL

Ingersoll 22N3R-17020D3R01 Milling Cutter 45.0° 1.750 Cylindrical1.0000 4 Flute Coolant 0.933 Max DOC 2.000 OAL

Part Number: ING2924386 ISO: 22N3R-17020D3R01 ANSI:22N3R-17020D3R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008634
Vendor: Sussex Tool and Supply
$1,260.00

Description

INGERSOLL 2924386 Parallelogram 45.0°, Chamfer Mill, Corn Cob End Mill Cylindrical 1.0000 Positive 1.7500 44.45MM - 1-3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill, Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.7500 44.45MM - 1-3/4
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 1.7500 44.45MM - 1-3/4
Depth Of Cut Max 0.9330
Cut Dia Max 3.6210 91.97MM
Materials & Finish
Tool Material Steel
