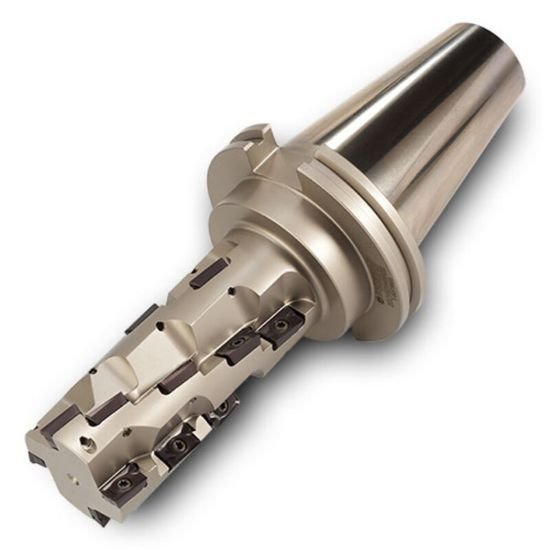

Picture of Ingersoll 22J5B-2006048R01 Milling Cutter 90.0°, Corn Cob 2.000 CAT50 4 Flute 4.1 Max DOC 10.00 OAL

Ingersoll 22J5B-2006048R01 Milling Cutter 90.0°, Corn Cob 2.000 CAT50 4 Flute 4.1 Max DOC 10.00 OAL

Part Number: ING3002585 ISO: 22J5B-2006048R01 ANSI:22J5B-2006048R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008669
Vendor: Sussex Tool and Supply
$2,193.33

Description

INGERSOLL 3002585 Parallelogram 90.0°, Corn Cob Machine Taper CAT50 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Non Coolant
Type Of Tool Machine Taper
Insert/Tool TOOL
Cut Type Roughing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 10.0000 254.00MM
Flutes/Inserts 4
Tool Dia 2.0000 50.80MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 4.1000
Materials & Finish
Tool Material Steel
