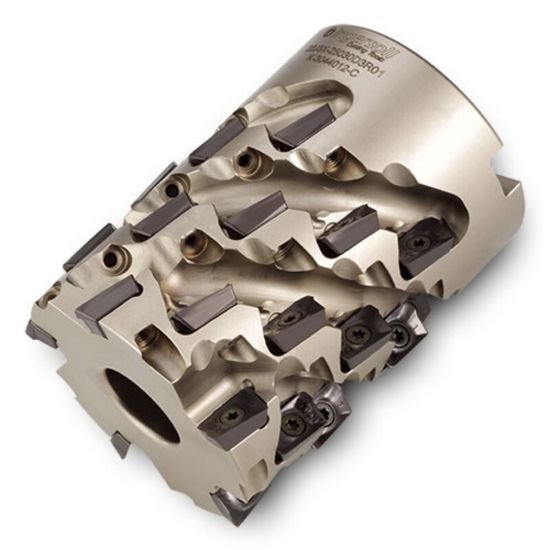

Picture of Ingersoll 22J3X-20025D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 5 Flute 2.16 Max DOC 3.000 OAL

Ingersoll 22J3X-20025D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 5 Flute 2.16 Max DOC 3.000 OAL

Part Number: ING3025417 ISO: 22J3X-20025D1R01 ANSI:22J3X-20025D1R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008984
Vendor: Sussex Tool and Supply
$1,456.00

Description

INGERSOLL 3025417 Parallelogram 90.0°, Corn Cob End Mill Weldon 0.7500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 5
Tool Dia 2.0000 50.80MM
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 2.1600
Materials & Finish
Tool Material Steel
