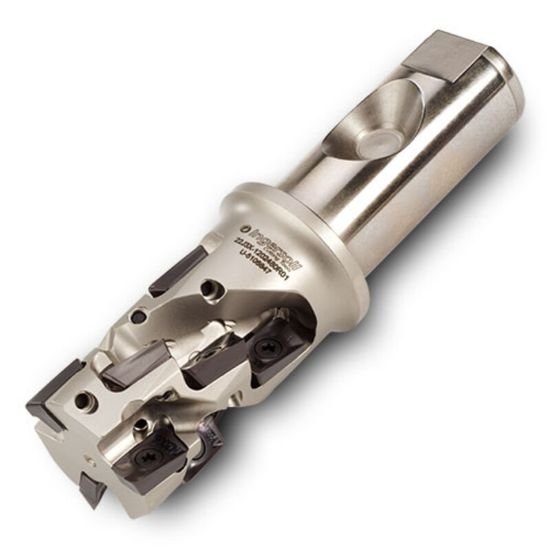

Picture of Ingersoll 22J3X-1002080R01 Milling Cutter 90.0°, Corn Cob 1.000 Cylindrical1.0000 2 Flute 1.35 Max DOC 4.270 OAL

Ingersoll 22J3X-1002080R01 Milling Cutter 90.0°, Corn Cob 1.000 Cylindrical1.0000 2 Flute 1.35 Max DOC 4.270 OAL

Part Number: ING3024814 ISO: 22J3X-1002080R01 ANSI:22J3X-1002080R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008967
Vendor: Sussex Tool and Supply
$788.00
INGERSOLL 3024814 Parallelogram 90.0°, Corn Cob End Mill Cylindrical 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.2700 108.46MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 12
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 1.3500
Cutting Edge Angle 90.0°
