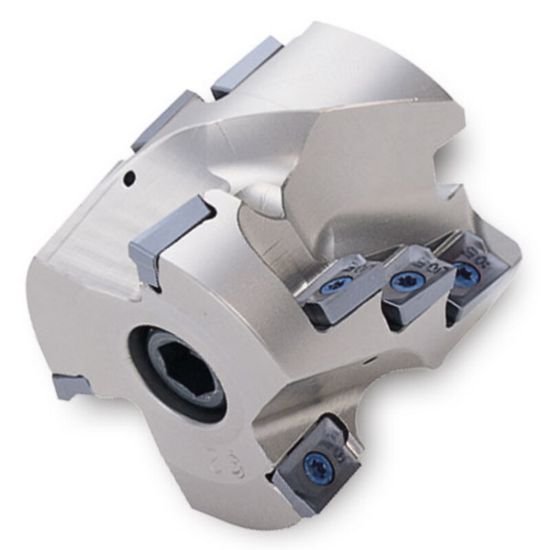

Picture of Ingersoll 22J3R050046F1R00 Milling Cutter 90.0°, Corn Cob 1.967 Cylindrical0.8661 4 Flute Coolant 1.811 Max DOC 2.755 OAL

Ingersoll 22J3R050046F1R00 Milling Cutter 90.0°, Corn Cob 1.967 Cylindrical0.8661 4 Flute Coolant 1.811 Max DOC 2.755 OAL

Part Number: ING3060288 ISO: 22J3R050046F1R00 ANSI:22J3R050046F1R00
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009553
Vendor: Sussex Tool and Supply
$1,801.33

Description

INGERSOLL 3060288 Parallelogram 90.0°, Corn Cob End Mill Cylindrical 0.8661 Positive 1.9670 49.96MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.8661 22.00MM
Flutes/Inserts 4
Tool Dia 1.9670 49.96MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.9690 50.01MM
Depth Of Cut Max 1.8110
Max Ramp Angle 2.10°
Materials & Finish
Tool Material Steel
