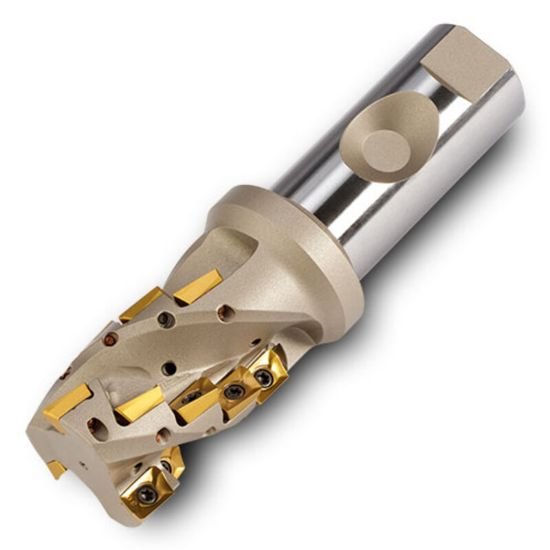

Picture of Ingersoll 22J3P-1502881R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical1.2500 4 Flute Coolant 2 Max DOC 5.000 OAL

Ingersoll 22J3P-1502881R01 Milling Cutter 90.0°, Corn Cob 1.500 Cylindrical1.2500 4 Flute Coolant 2 Max DOC 5.000 OAL

Part Number: ING3028216 ISO: 22J3P-1502881R01 ANSI:22J3P-1502881R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009130
Vendor: Sussex Tool and Supply
$1,428.00

Description

INGERSOLL 3028216 Parallelogram 90.0°, Corn Cob End Mill Cylindrical 1.2500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 2.0000
Max Ramp Angle 2.00°
Materials & Finish
Tool Material Steel
