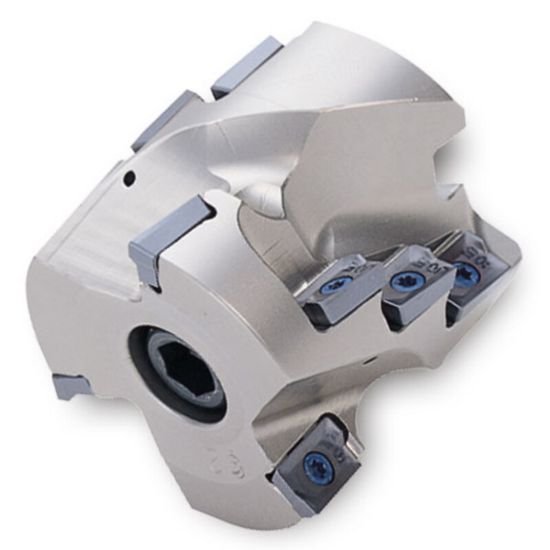

Picture of Ingersoll 22J3G080074F3R00 Milling Cutter 90.0°, Corn Cob 3.150 Cylindrical1.2598 4 Flute Coolant 2.9134 Max DOC 3.740 OAL

Ingersoll 22J3G080074F3R00 Milling Cutter 90.0°, Corn Cob 3.150 Cylindrical1.2598 4 Flute Coolant 2.9134 Max DOC 3.740 OAL

Part Number: ING3027829 ISO: 22J3G080074F3R00 ANSI:22J3G080074F3R00
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009090
Vendor: Sussex Tool and Supply
$2,221.33

Description

INGERSOLL 3027829 Parallelogram 90.0°, Corn Cob End Mill Cylindrical 1.2598 Positive 3.1500 80.01MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 3.7400 95.00MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 4
Tool Dia 3.1500 80.01MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 3.1500 80.01MM
Depth Of Cut Max 2.9134
Max Ramp Angle 2.30°
Materials & Finish
Tool Material Steel
