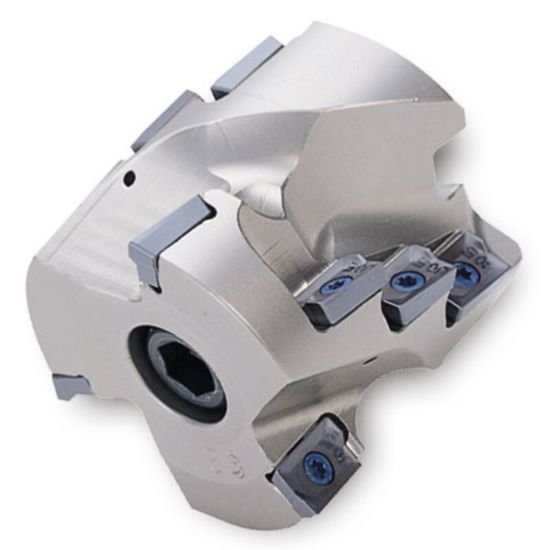

Picture of Ingersoll 22J3G063059F2R01 Milling Cutter 90.0°, Corn Cob 2.480 Cylindrical1.0630 4 Flute Coolant 2.3228 Max DOC 2.952 OAL

Ingersoll 22J3G063059F2R01 Milling Cutter 90.0°, Corn Cob 2.480 Cylindrical1.0630 4 Flute Coolant 2.3228 Max DOC 2.952 OAL

Part Number: ING3027828 ISO: 22J3G063059F2R01 ANSI:22J3G063059F2R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009089
Vendor: Sussex Tool and Supply
$1,866.67

Description

INGERSOLL 3027828 Parallelogram 90.0°, Corn Cob End Mill Cylindrical 1.0630 Positive 2.4800 62.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 2.9528 75.00MM
Shank/Pilot Dia 1.0630 27.00MM
Flutes/Inserts 4
Tool Dia 2.4800 62.99MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.4800 62.99MM
Depth Of Cut Max 2.3228
Max Ramp Angle 3.20°
Materials & Finish
Tool Material Steel
