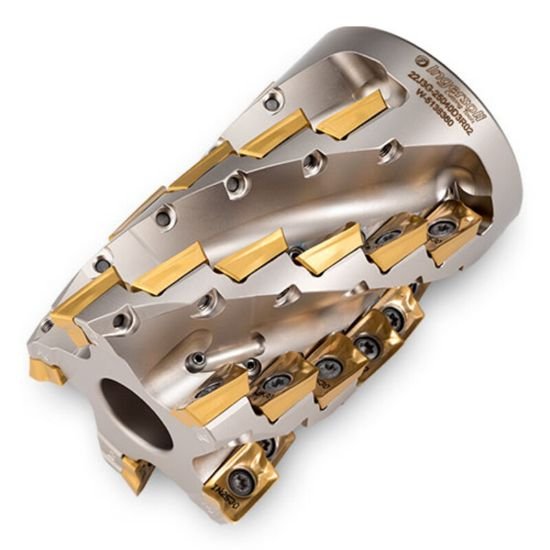

Picture of Ingersoll 22J3G-30040D4R02 Milling Cutter 90.0°, Corn Cob 3.000 Cylindrical1.2500 6 Flute Coolant 3.35 Max DOC 4.000 OAL

Ingersoll 22J3G-30040D4R02 Milling Cutter 90.0°, Corn Cob 3.000 Cylindrical1.2500 6 Flute Coolant 3.35 Max DOC 4.000 OAL

Part Number: ING2922506 ISO: 22J3G-30040D4R02 ANSI:22J3G-30040D4R02
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008609
Vendor: Sussex Tool and Supply
$2,436.00

Description

INGERSOLL 2922506 Parallelogram 90.0°, Corn Cob End Mill Cylindrical 1.2500 Positive 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 6
Tool Dia 3.0000 76.20MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 3.3500
Max Ramp Angle 2.00°
Materials & Finish
Tool Material Steel
